    • Active Isolator
    SFT Series
    • 하중 범위 : 600kg ~ 8,000kg
    • 위치 안정성 : ≤±8μm
    • 진동 전달률 : ≤-10dB@1Hz, ≤-20dB@2Hz, ≤-25dB@5Hz, ≤-35dB@10Hz, ≤-40dB@20Hz
    • 6 DOP (6 Degrees Of Freedom)
    • Active Isolation Range : 0.8 ~ 150Hz
    • Passive Element : Pneumatic Air Spring
    E-카달로그

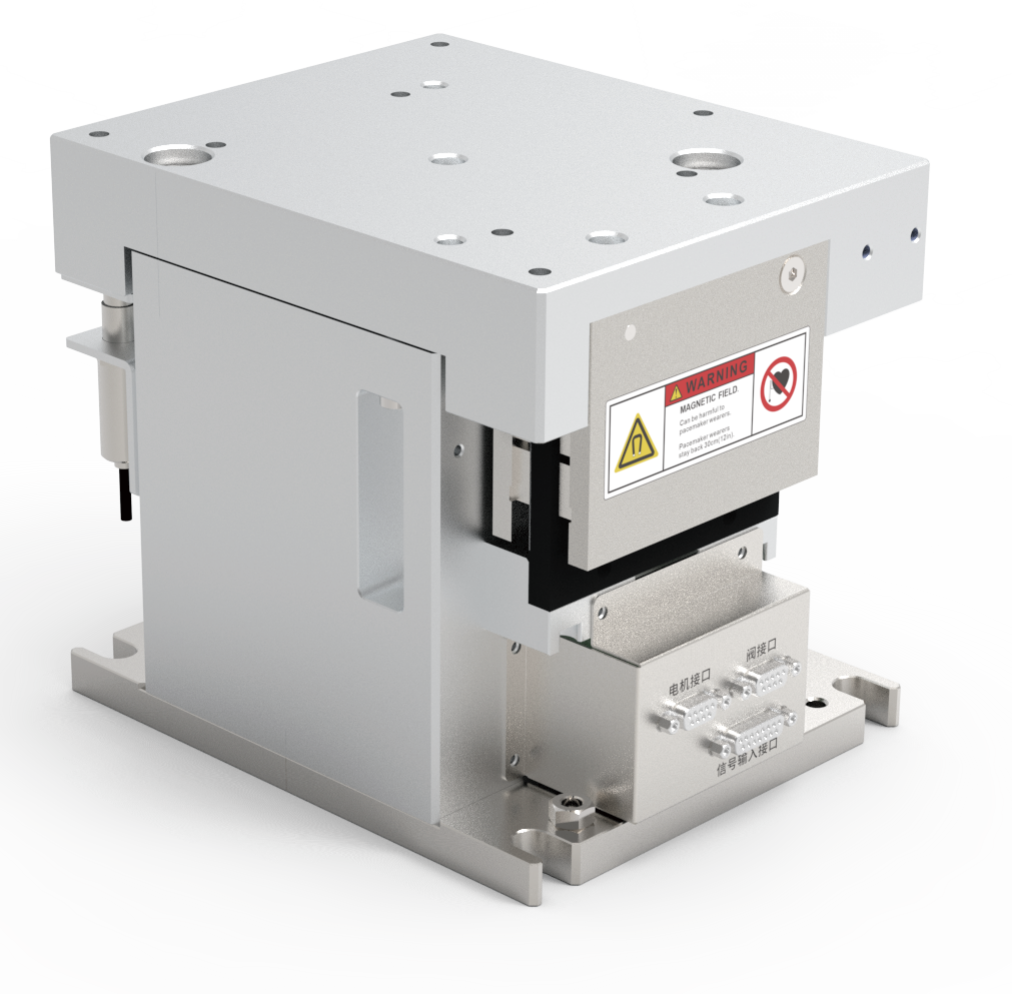

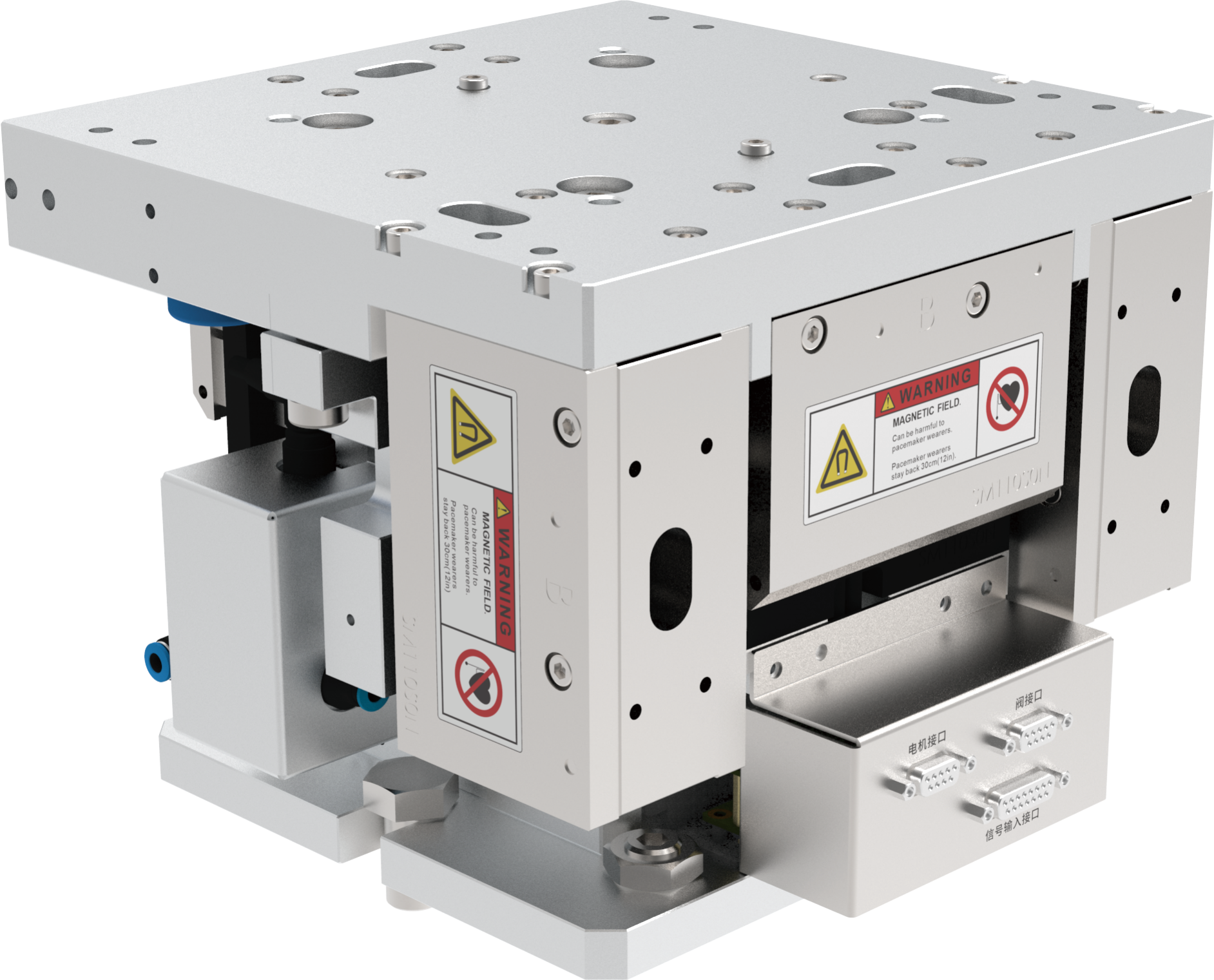

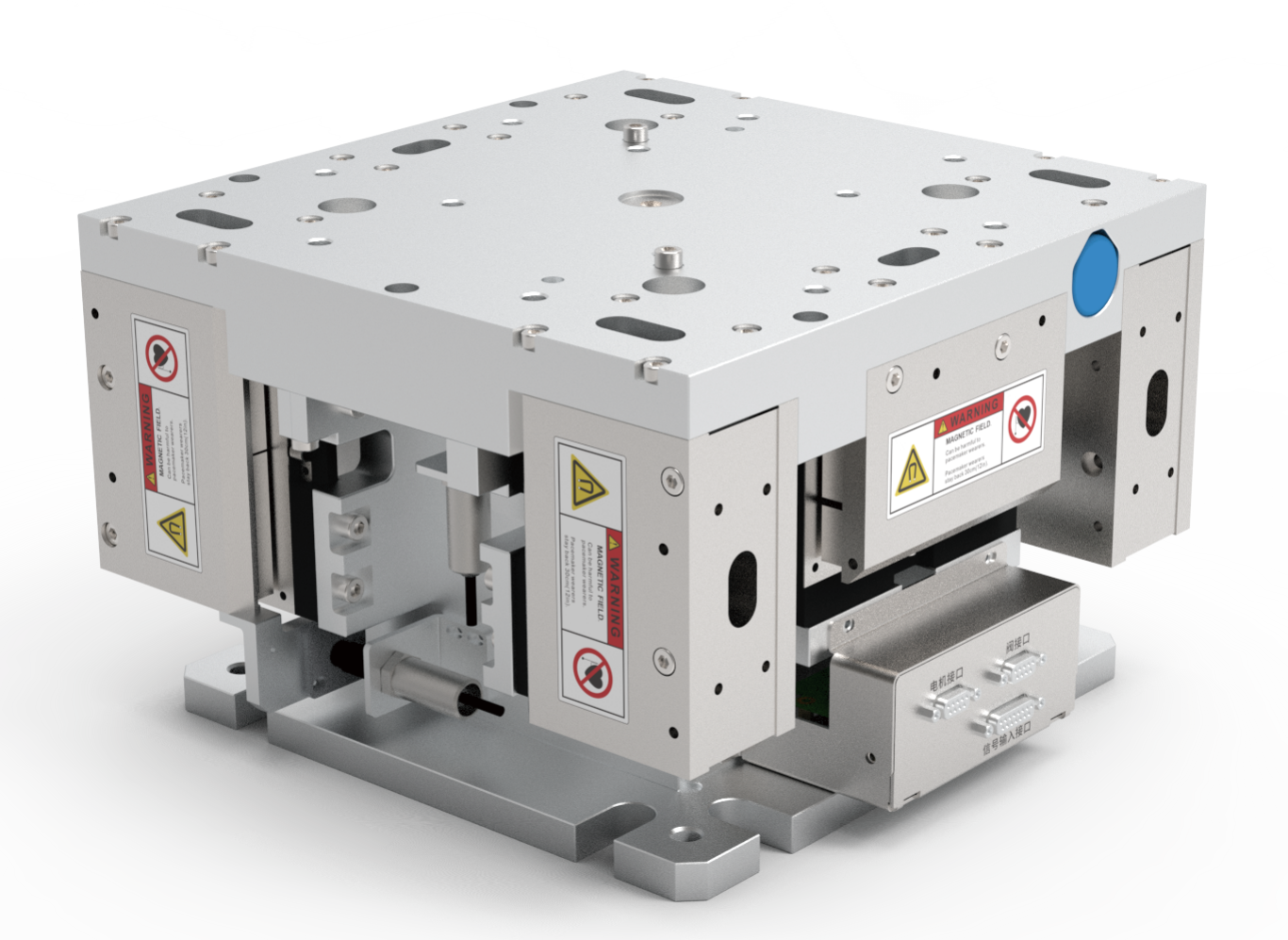

    SFT Pnuematic Series



    SFT 시리즈 충격형 능동 진동 차단기는 수직 방향에서 공기 스프링을 주요 지지체로 사용하고, 수평 방향에서는 기계식 링크를 통해 피드백 메커니즘과 정밀한 제어 구조를 결합합니다.

    수직 및 수평 방향의 능동 진동 제어와 정밀 위치 제어를 통해     6자유도 고성능 능동 진동 제어 및 감쇠를 실현하며, 초정밀 제조 장비의 고성능 진동 차단 및 충격 안정성 요구를 충족할 수 있습니다.

    Passive Element Pneumatic Air Spring
    Max Load Capacity With 4 Isolator 1,000~1,600kg
    Isolator Simension 248x240x202
    Isolator Weight ≤29kg
    Degrees of Freedom 6
    Active Isolation Range 0.8~150Hz
    Transmissibility ≤-10dB@1Hz, ≤-15dB@2Hz, ≤-25dB@5Hz, ≤-35dB@10Hz
    Position Stability ≤±8μm
    Horizontal Actuator Force per Isolator 320N
    Vertical Actuator Force per Isolator 320N
    Max System Power 700W
    Passive Element Pneumatic Air Spring
    Max Load Capacity With 4 Isolator 1,000~1,600kg
    Isolator Simension 308x300x202
    Isolator Weight ≤47kg
    Degrees of Freedom 6
    Active Isolation Range 0.8~150Hz
    Transmissibility ≤-3dB@2Hz, ≤-12dB@5Hz, ≤-25dB@10Hz
    Position Stability ≤±8μm
    Horizontal Actuator Force per Isolator 640N
    Vertical Actuator Force per Isolator 320N
    Max System Power 1,500W
    Passive Element Pneumatic Air Spring
    Max Load Capacity With 4 Isolator 1,600~2,400kg
    Isolator Simension 308x300x202
    Isolator Weight ≤38kg
    Degrees of Freedom 6
    Active Isolation Range 0.8~150Hz
    Transmissibility ≤-10dB@1Hz, ≤-15dB@2Hz, ≤-25dB@5Hz, ≤-35dB@10Hz
    Position Stability ≤±8μm
    Horizontal Actuator Force per Isolator 320N
    Vertical Actuator Force per Isolator 320N
    Max System Power 700W
    Passive Element Pneumatic Air Spring
    Max Load Capacity With 4 Isolator 1,600~2,400kg
    Isolator Simension 308x300x202
    Isolator Weight ≤49kg
    Degrees of Freedom 6
    Active Isolation Range 0.8~150Hz
    Transmissibility ≤-3dB@2Hz, ≤-12dB@5Hz, ≤-25dB@10Hz
    Position Stability ≤±8μm
    Horizontal Actuator Force per Isolator 640N
    Vertical Actuator Force per Isolator 320N
    Max System Power 1,500W
    Passive Element Pneumatic Air Spring
    Max Load Capacity With 4 Isolator 2,400~3,200kg
    Isolator Simension 308x300x202
    Isolator Weight ≤32kg
    Degrees of Freedom 6
    Active Isolation Range 0.8~150Hz
    Transmissibility ≤-10dB@1Hz, ≤-15dB@2Hz, ≤-25dB@5Hz, ≤-35dB@10Hz
    Position Stability ≤±8μm
    Horizontal Actuator Force per Isolator 320N
    Vertical Actuator Force per Isolator 320N
    Max System Power 700W
    Passive Element Pneumatic Air Spring
    Max Load Capacity With 4 Isolator 2,400~3,200kg
    Isolator Simension 308x300x202
    Isolator Weight ≤49kg
    Degrees of Freedom 6
    Active Isolation Range 0.8~150Hz
    Transmissibility ≤-3dB@2Hz, ≤-12dB@5Hz, ≤-25dB@10Hz
    Position Stability ≤±8μm
    Horizontal Actuator Force per Isolator 640N
    Vertical Actuator Force per Isolator 320N
    Max System Power 1,500W
    Passive Element Pneumatic Air Spring
    Max Load Capacity With 4 Isolator 600~1,200kg
    Isolator Simension 210x210x185
    Isolator Weight ≤20kg
    Degrees of Freedom 6
    Active Isolation Range 0.8~150Hz
    Transmissibility ≤-10dB@1Hz, ≤-15dB@2Hz, ≤-25dB@5Hz, ≤-35dB@10Hz
    Position Stability ≤±8μm
    Horizontal Actuator Force per Isolator 135N
    Vertical Actuator Force per Isolator 135N
    Max System Power 400W
    Passive Element Pneumatic Air Spring
    Max Load Capacity With 4 Isolator 1,000~1,600kg
    Isolator Simension 225x185x202
    Isolator Weight ≤17kg
    Degrees of Freedom 6
    Active Isolation Range 0.8~150Hz
    Transmissibility ≤-10dB@1Hz, ≤-15dB@2Hz, ≤-25dB@5Hz, ≤-35dB@10Hz
    Position Stability ≤±8μm
    Horizontal Actuator Force per Isolator 40N
    Vertical Actuator Force per Isolator 40N
    Max System Power 400W
    Passive Element Pneumatic Air Spring
    Max Load Capacity With 4 Isolator 2,400~3,200kg
    Isolator Simension 308x300x202
    Isolator Weight ≤49kg
    Degrees of Freedom 6
    Active Isolation Range 0.8~150Hz
    Transmissibility ≤-3dB@2Hz, ≤-12dB@5Hz, ≤-25dB@10Hz
    Position Stability ≤±8μm
    Horizontal Actuator Force per Isolator 960N
    Vertical Actuator Force per Isolator 640N
    Max System Power 3,000W
    Passive Element Pneumatic Air Spring
    Max Load Capacity With 4 Isolator 2,500~4,000kg
    Isolator Simension 260x260x259
    Isolator Weight ≤45kg
    Degrees of Freedom 6
    Active Isolation Range 0.8~150Hz
    Transmissibility ≤-12dB@1Hz, ≤-15dB@5Hz, ≤-25dB@10Hz
    Position Stability ≤±8μm
    Horizontal Actuator Force per Isolator 320N
    Vertical Actuator Force per Isolator 320N
    Max System Power 700W
    Passive Element Pneumatic Air Spring
    Max Load Capacity With 4 Isolator 3,500~5,200kg
    Isolator Simension 290x290x259
    Isolator Weight ≤39kg
    Degrees of Freedom 6
    Active Isolation Range 0.8~150Hz
    Transmissibility ≤-10dB@2Hz, ≤-25dB@5Hz,≤-35dB@10Hz
    Position Stability ≤±8μm
    Horizontal Actuator Force per Isolator 320N
    Vertical Actuator Force per Isolator 320N
    Max System Power 700W
    Passive Element Pneumatic Air Spring
    Max Load Capacity With 4 Isolator 3,500~5,200kg
    Isolator Simension 290x290x259
    Isolator Weight ≤26kg
    Degrees of Freedom 6
    Active Isolation Range 0.8~150Hz
    Transmissibility ≤-5dB@1Hz, ≤-15dB@2Hz, ≤-25dB@5Hz, ≤-35dB@10Hz
    Position Stability ≤±8μm
    Horizontal Actuator Force per Isolator 130N
    Vertical Actuator Force per Isolator 130N
    Max System Power 400W
    Passive Element Pneumatic Air Spring
    Max Load Capacity With 4 Isolator 3,500~5,200kg
    Isolator Simension 290x290x259
    Isolator Weight ≤67kg
    Degrees of Freedom 6
    Active Isolation Range 0.8~150Hz
    Transmissibility ≤-3dB@3Hz, ≤-12dB@5Hz,≤-25dB@10Hz
    Position Stability ≤±8μm
    Horizontal Actuator Force per Isolator 640N
    Vertical Actuator Force per Isolator 320N
    Max System Power 1,500W
    Passive Element Pneumatic Air Spring
    Max Load Capacity With 4 Isolator 3,500~5,200kg
    Isolator Simension 290x290x259
    Isolator Weight ≤43kg
    Degrees of Freedom 6
    Active Isolation Range 0.8~150Hz
    Transmissibility ≤-3dB@2Hz, ≤-12dB@5Hz, ≤-25dB@10Hz
    Position Stability ≤±8μm
    Horizontal Actuator Force per Isolator 320N
    Vertical Actuator Force per Isolator 320N
    Max System Power 700W
    Passive Element Pneumatic Air Spring
    Max Load Capacity With 4 Isolator 3,500~5,200kg
    Isolator Simension 290x290x259
    Isolator Weight ≤46kg
    Degrees of Freedom 6
    Active Isolation Range 0.8~150Hz
    Transmissibility ≤-3dB@2Hz, ≤-15dB@5Hz,≤-25dB@10Hz
    Position Stability ≤±8μm
    Horizontal Actuator Force per Isolator 640N
    Vertical Actuator Force per Isolator 320N
    Max System Power 1,500W
    Passive Element Pneumatic Air Spring
    Max Load Capacity With 4 Isolator 4,500~7,200kg
    Isolator Simension 380x370x260
    Isolator Weight ≤86kg
    Degrees of Freedom 6
    Active Isolation Range 0.8~150Hz
    Transmissibility ≤-3dB@2Hz, ≤-12dB@5Hz, ≤-25dB@10Hz
    Position Stability ≤±8μm
    Horizontal Actuator Force per Isolator 640N
    Vertical Actuator Force per Isolator 320N
    Max System Power 1,500W
    Passive Element Pneumatic Air Spring
    Max Load Capacity With 4 Isolator 4,500~7,200kg
    Isolator Simension 380x370x260
    Isolator Weight ≤58kg
    Degrees of Freedom 6
    Active Isolation Range 0.8~150Hz
    Transmissibility ≤-10dB@1Hz, ≤-20dB@2Hz, ≤-25dB@5Hz, ≤-35dB@10Hz, ≤-40dB@20Hz
    Position Stability ≤±8μm
    Horizontal Actuator Force per Isolator 135N
    Vertical Actuator Force per Isolator 135N
    Max System Power 400W
